FORD BRONCO 4X4 NORRA RACER
NORRA RACER

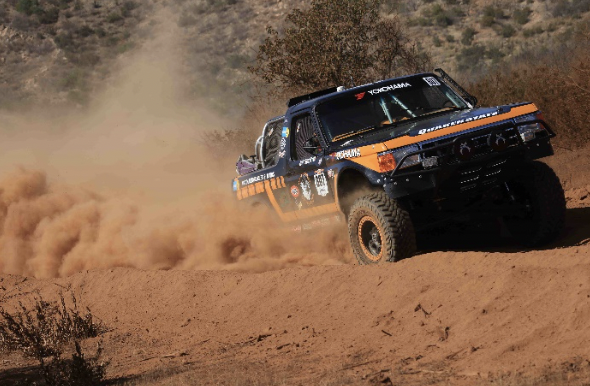

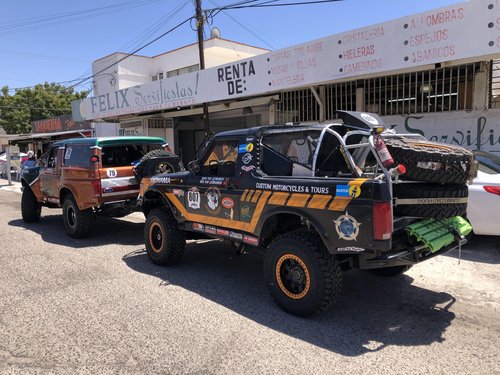

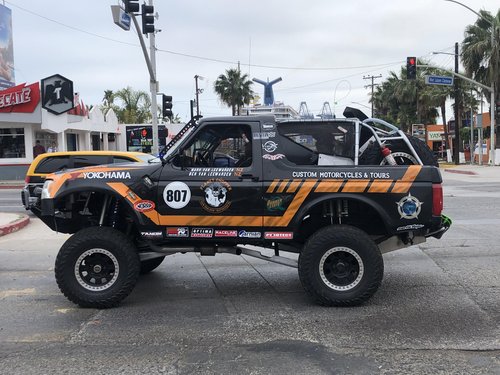

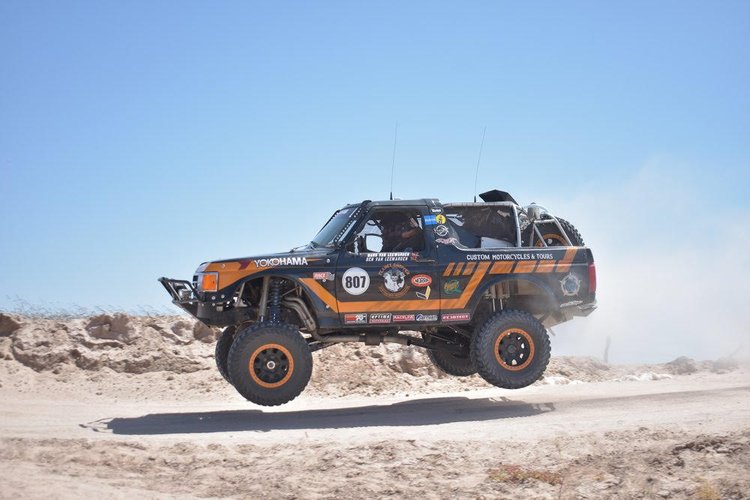

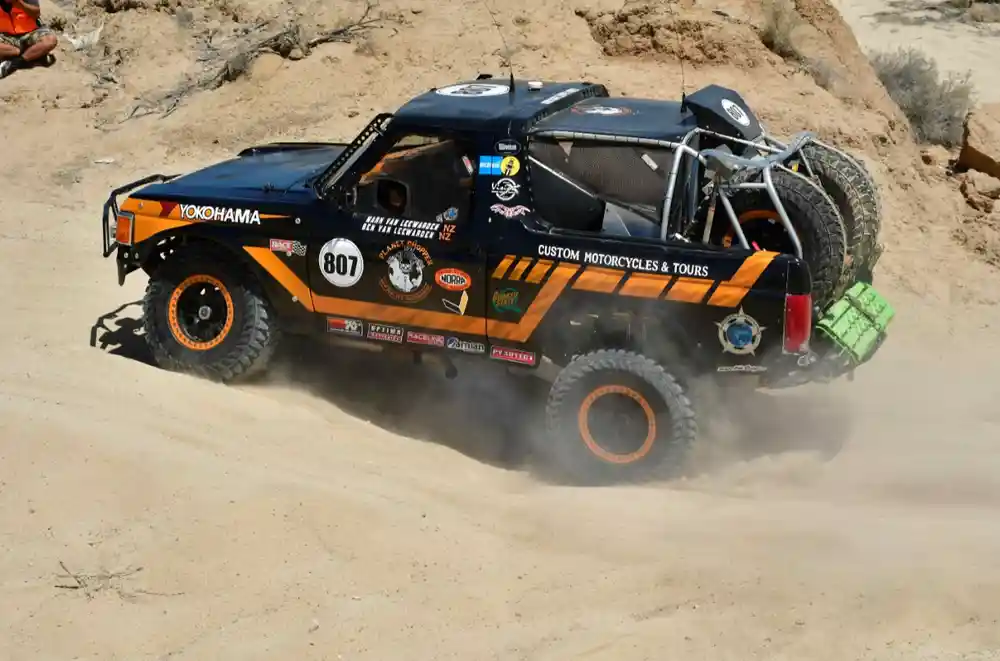

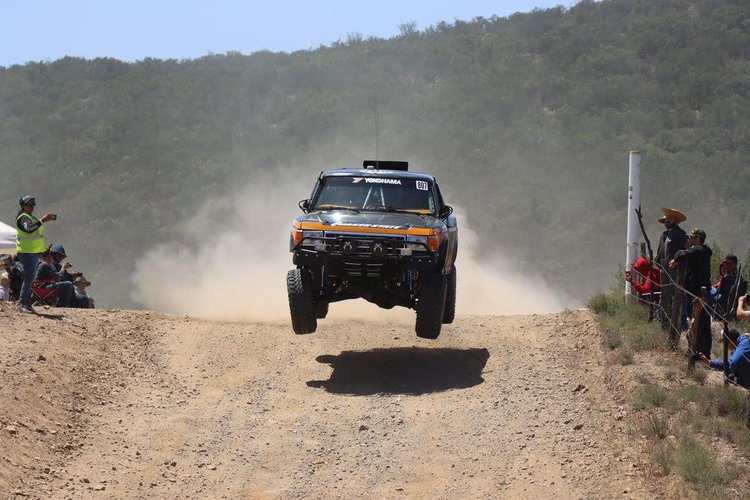

This 1983 FORD Bronco is a great, fun and solid NORRA Race truck or Prerunner, with great reliability and power and retaining 4x4 to help you get out of those sticky situations with a lot better sounding with a powerful V8 rather than a UTV engine…The truck finished 1 st Place NORRA Mexican 1000 in Challenger 4x4 Class in both 2019 and 2023.

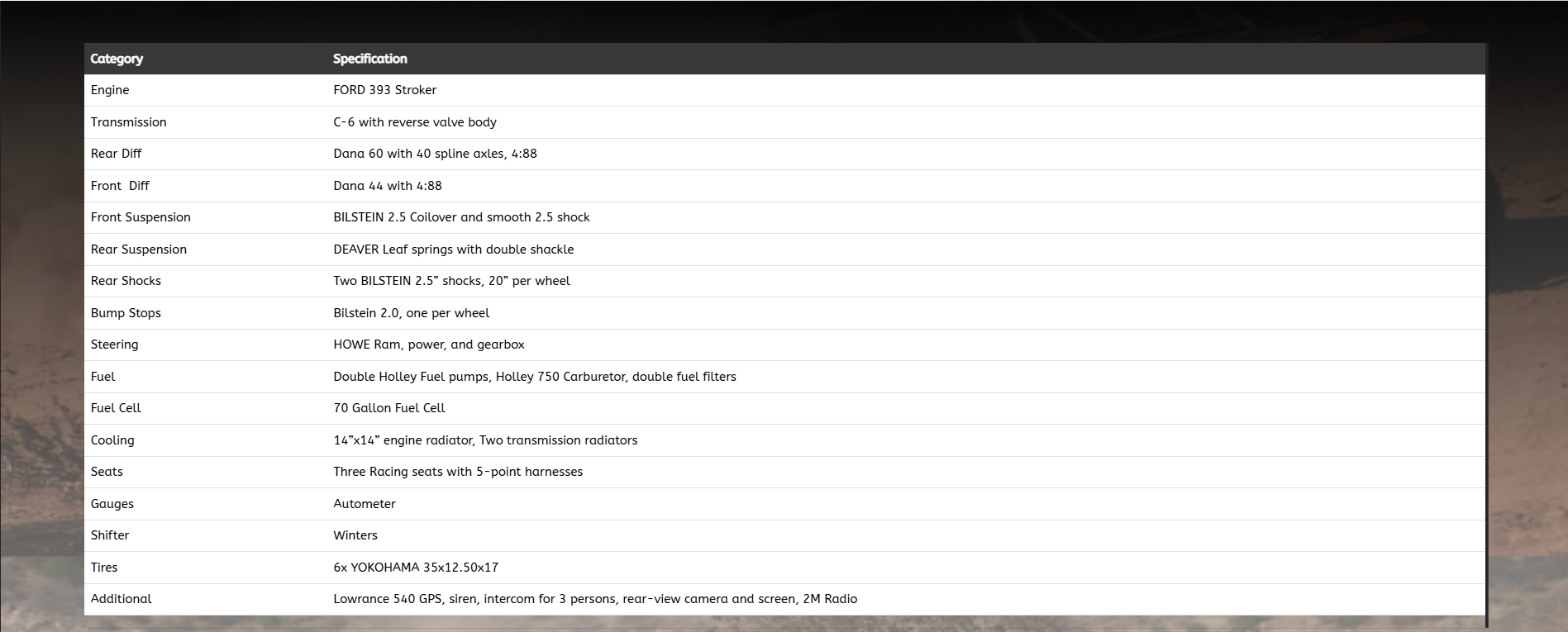

| Category | Specification |
|---|---|
| Engine | FORD 393 Stroker |
| Transmission | C-6 with reverse valve body |
| Rear Diff | Dana 60 with 40 spline axles, 4:88 |
| Front Diff | Dana 44 with 4:88 |
| Front Suspension | BILSTEIN 2.5 Coilover and smooth 2.5 shock |
| Rear Suspension | DEAVER Leaf springs with double shackle |
| Rear Shocks | Two BILSTEIN 2.5” shocks, 20” per wheel |
| Bump Stops | Bilstein 2.0, one per wheel |
| Steering | HOWE Ram, power, and gearbox |
| Fuel | Double Holley Fuel pumps, Holley 750 Carburetor, double fuel filters |
| Fuel Cell | 70 Gallon Fuel Cell |
| Cooling | 14”x14” engine radiator, Two transmission radiators |
| Seats | Three Racing seats with 5-point harnesses |
| Gauges | Autometer |
| Shifter | Winters |
| Tires | 6x YOKOHAMA 35x12.50x17 |
| Additional | Lowrance 540 GPS, siren, intercom for 3 persons, rear-view camera and screen, 2M Radio |
